Tether Repair Kit

1. Cut off the broken adapter

2. Strip the cable back and strip the individual cables to fit on the new adapter

3. Slip clear tub over wire

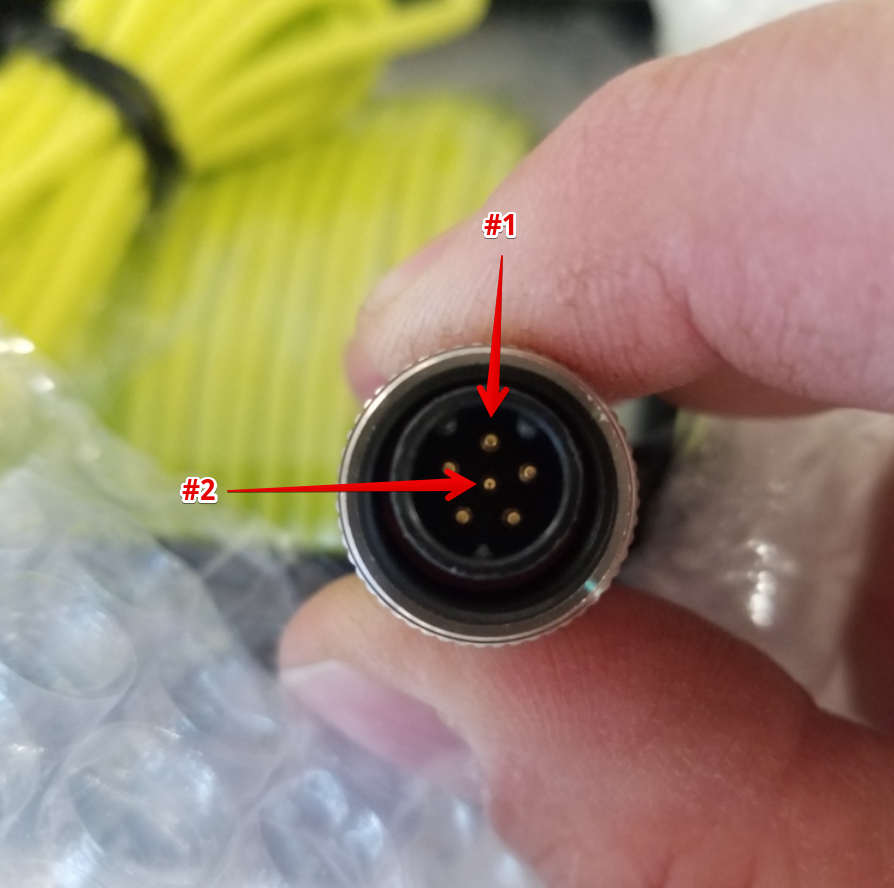

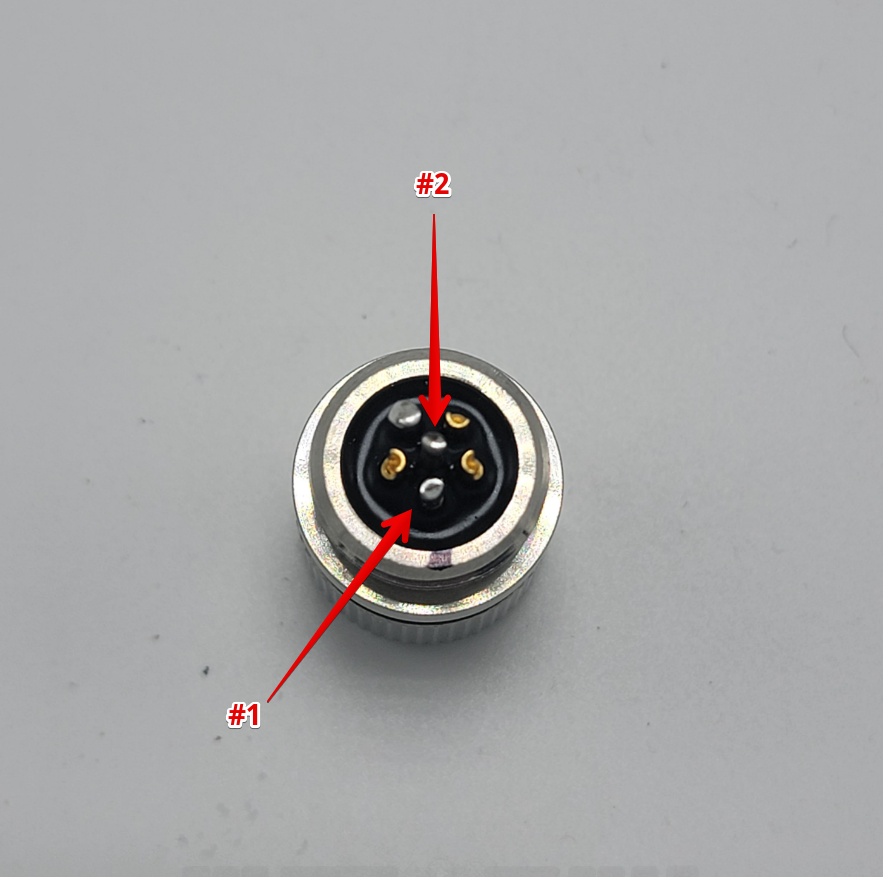

4. Solder the wires to the corresponding spots below. #1 position is the white wire.  #2 position is the black wire

5. Bench test with ROV to ensure it functions

6. Align tube over wires
7. Fill with Marine Flexible epoxy and let cure  - https://amzn.to/3sbeSy4  This may take 2 sessions.

8. Water test drone.

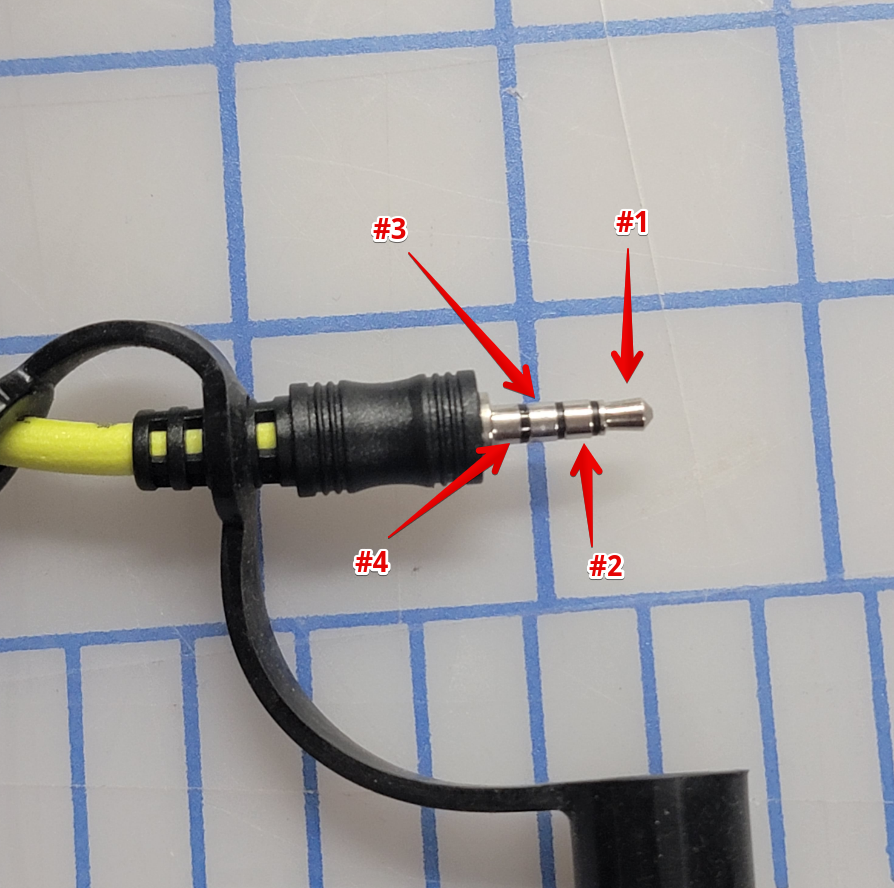

The other issue could be a broken mini jack. This is the part we use to replace that end if continuity is not working.

https://amzn.to/3NV58nt

Minijack
