How to change the E-GO propellers and thrusters in 5 easy steps

QySea E-Series Thruster Replacement (propeller replacement)

To replace the thruster on the E-GO series.  Use the following Steps.

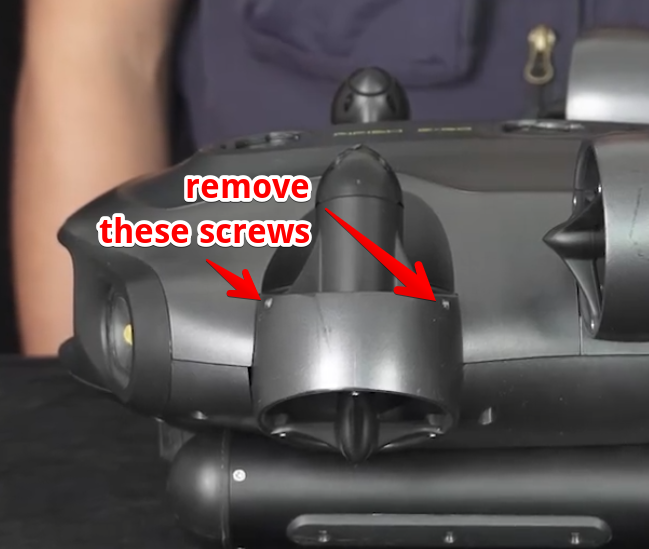

1. Remove the Shroud screws

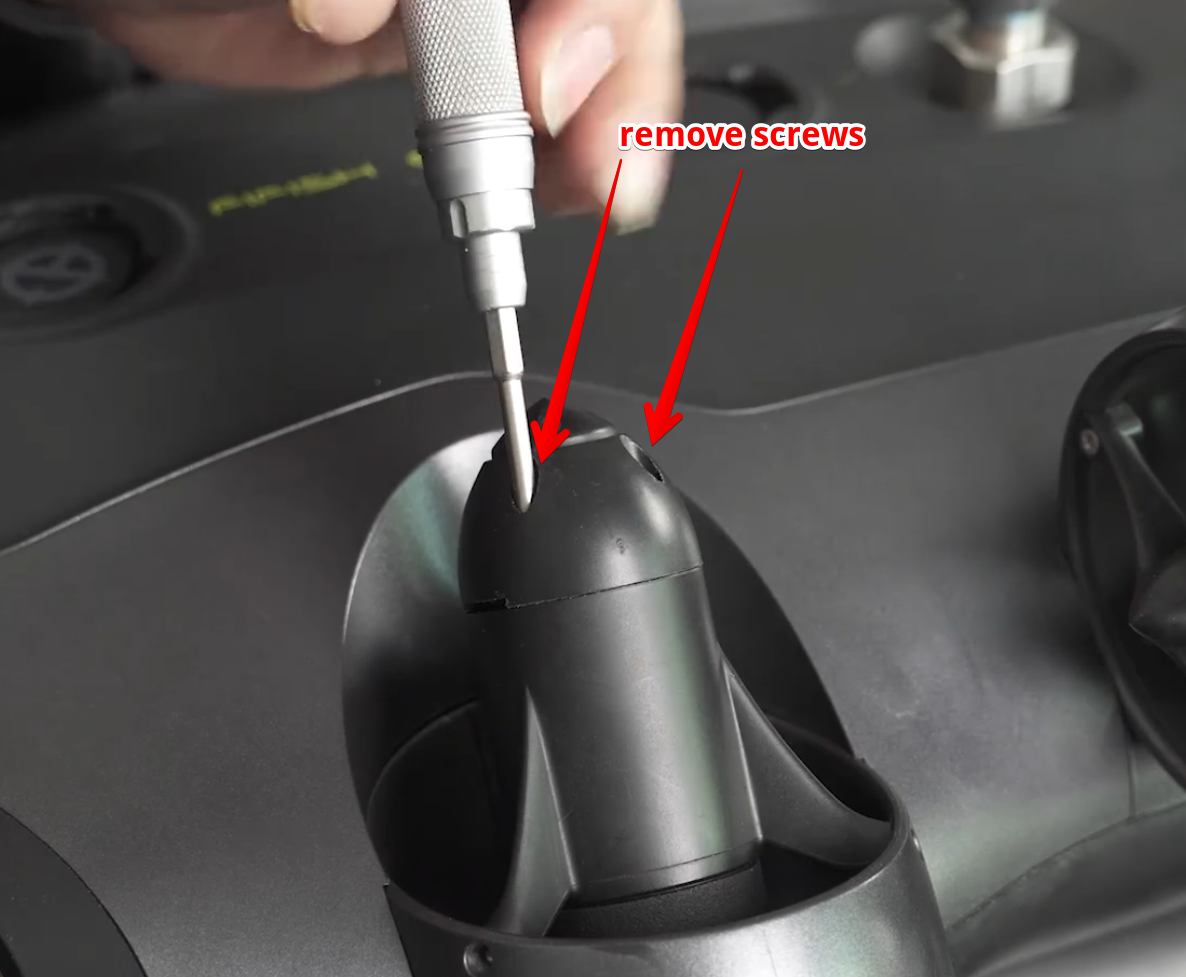

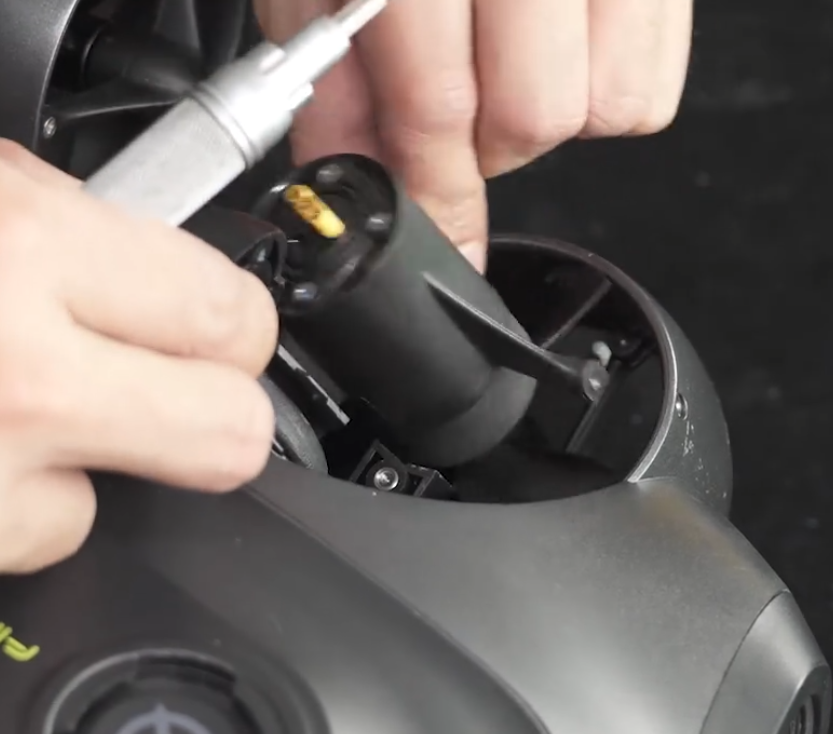

2. Remove the 4 Motor Connector Screws

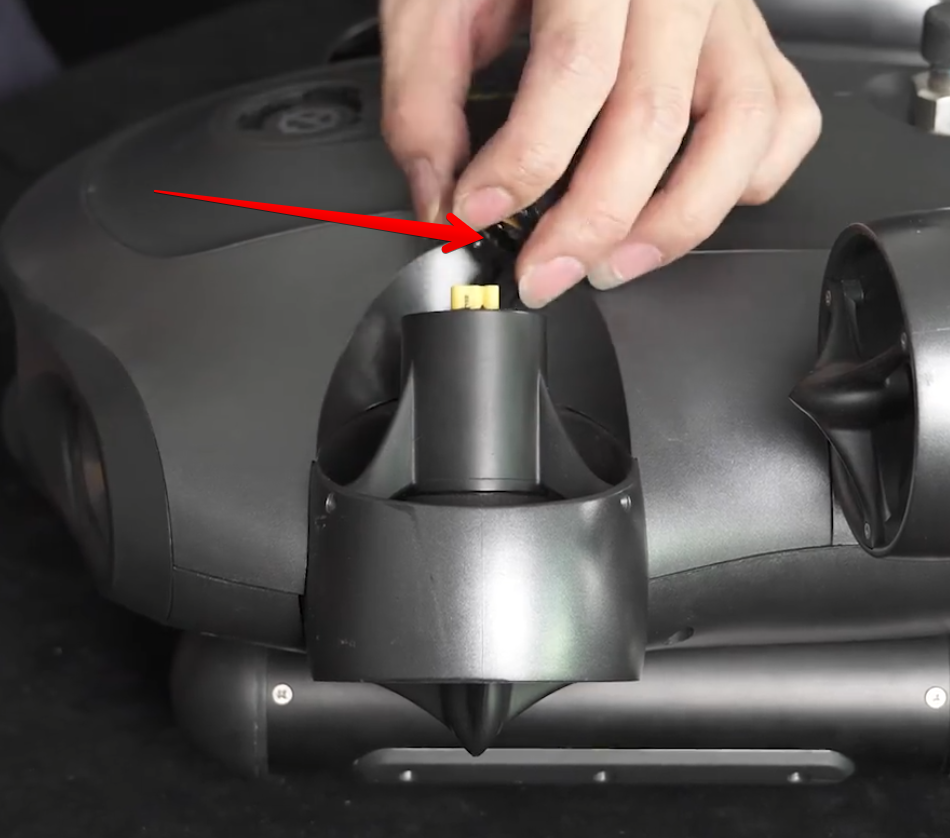

3. Detach the motor power connector

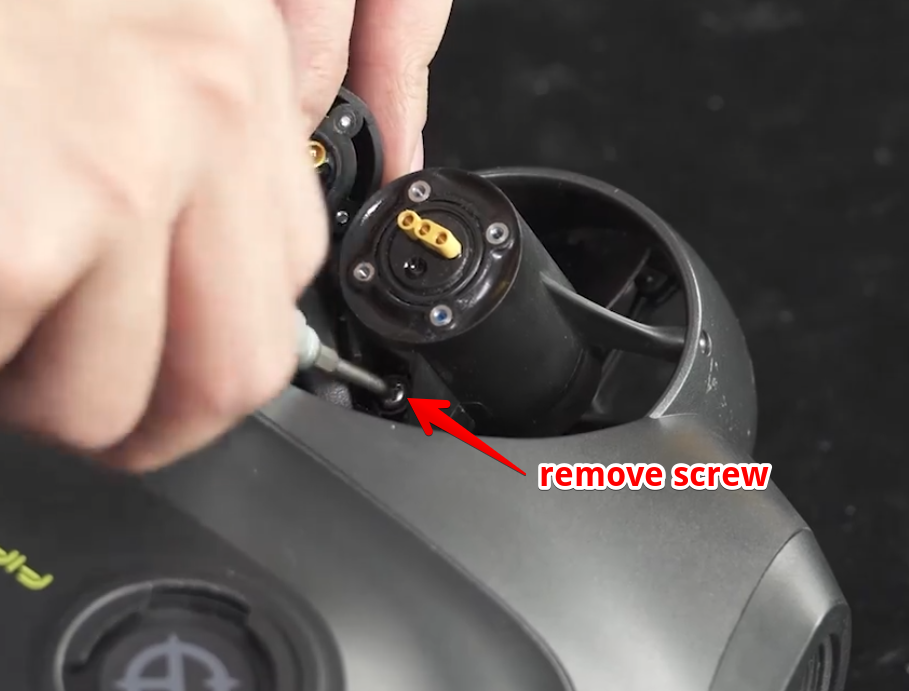

4. Remove Motor Mount Screw

5. Remove and Replace Thruster with propeller

The propeller is not replaceable on the thruster alone.  You must replace the entire part.

After replacing the thrusters, resecure with the screws in reverse order.
