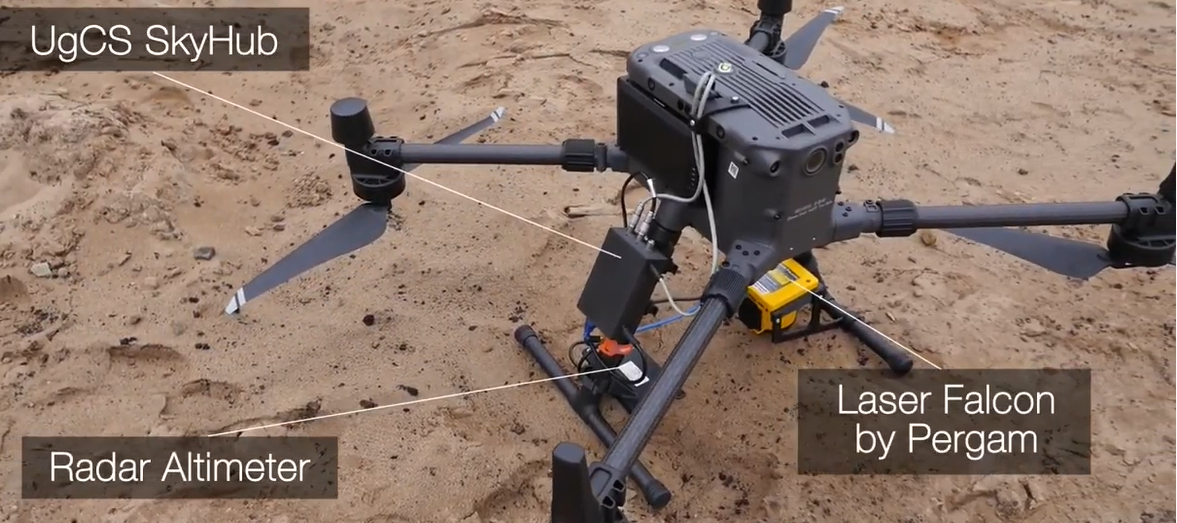

Laser Methane Falcon System for Matrice 300
- Live Data & Logger
- Includes mount for Matrice 300 (Matrice 600 also available)
- Skyhub and Cables
|
Target Gas |
Methane (CH4) and methane-containing gases (natural gas and similar) |
|
Detection Unit |
ppm*m |
|
Detection Limits |
1 ~ 50,000 ppm*m |
|
Detection Speed |
0.1 seconds |
|
Distance |
1.64 ft. – 328 ft. / 0.5 – 100 meters |
|
Weight & Dimensions |
approx. 8.12 oz |
|
Power Supply |
External power (5v-18V) |
|
Max. Wind Speed |
10 mps |
|
Operating Temperature |
-1.4°F – 120°F / -17°C – 50°C |
|
Operating Humidity |
30 – 90 % (no dew condensation) |
Skyhub Details
StableMATRIX is a water and soil remediation company. Pergam Technical Services performed an airborne methane inspection at one of StableMATRIX remediation lagoons. The Pergam methane detection system was mounted on DJI M600 Pro. The integration with the drone was enabled by UgCS SkyHub. Gas detection data was logged and transferred in real-time to the UgCS desktop software. The inspection covered approximately 2 lagoons located in Jerome Idaho, USA.
SAMPLE REPORT DIGESTER DOC
Digester Doc is an anaerobic digester company. Pergam Technical Services performed a drone-based airborne methane inspection at one of Digester Doc’s digesters. The Pergam LF - DL methane detection system was mounted on DJI M600 Pro. The integration with the drone was ensured by adding the onboard computer - UgCS SkyHub which logged the data and transferred it to the desktop UgCS software in real-time. The inspection covered approximately 1 digester located in Jerome Idaho, USA.
Download the sample report (PDF) »»»
- Can a methane detector detect other gases?
No, each device is designed to detect a specific gas. This provides a 100% probability of leak detection of methane and not any other gas. - Is laser radiation hazardous for eyes?
Laser radiation is completely safe, it corresponds to class 1. - Can the remote laser detector be used at night, in rain, fog and snowfall?
Yes. It is an active device, it emits at a certain narrow wavelength, so it does not need additional signal sources. - Do I need to calibrate detectors before commissioning?
No. The detector contains a reference container with methane inside and calibration is performed at each start-up and during operation. - How often do detectors need to be verified?
The detector does not need to be verified because it is not a measuring tool. - Why is a laser detector better than a common sniffer?
It works remotely. There is no direct contact with the hazardous environment. - Can the detector detect methane through glass?
Yes, because glass transmits the near infrared radiation well.

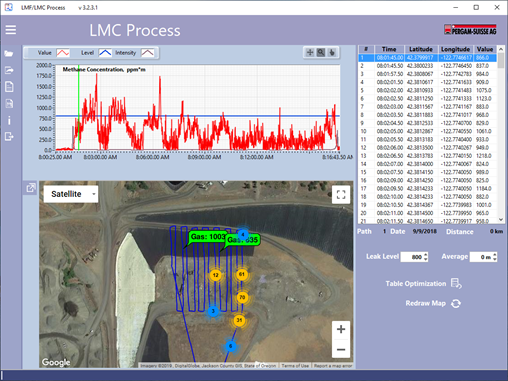

Top left for Menu Button
Open File, select your data Set
Adjust the Leak Level to an appropriate level (20, 100, 200, 500,)
It will ignore anything under that level, so you can use this to remove noise
Use the Average button to essentially call numerous detections within a specific distance 1 detection
After making adjustments to those, click the redraw map button.
From here you can export the data, make reports, or do whatever you want. You can go find the location of the report template (C:\GLD Data) and make your own edits. For example, you can put in YOUR COMPANY instead of Pergam.
TRAINING
- $3500 — Schedule to come to Seattle for a 1/2 day face to face training and then a separately scheduled 5 day rental on your own. Plan on using the first day or two of your rental to to self train. Do not try to serve a client right at the first of your rental. Give yourself adequate time to generate some test datasets on small area scans to make sure you are ready before serving a client.
It is the best value and gives you the best chance for success, by giving you a solid day of face to face training and a 5 day rental on your own to practice and cement the skills. - $1500 — Schedule to come to Seattle for a 1/2 day face to face training. This option works well for those that want to come up to speed on Laser Falcon and Skyhub technology and get some hands on experience on the equipment in order to explore the field and to prepare for rental or purchase in the future. For all options upfront study and questions are highly recommended. We provide manuals and our own lessons learned documents and guides. For the in person training, they are at our shop in Seattle and include ground and flight training as well as post processing. It is an operational level training geared at getting you hands on time to be able to generate usable datasets. It is definitely not a PhD level course in Mapping & Processing. The goal is to get you operational on the equipment to hit the ground running generating accurate data for mapping.
- Starting at $4500 — If you need training at your location we can accommodate that typically. We would combine that with a 3 day rental period following the time of training. Travel Costs would be in addition to the training and rental costs for the systems.
